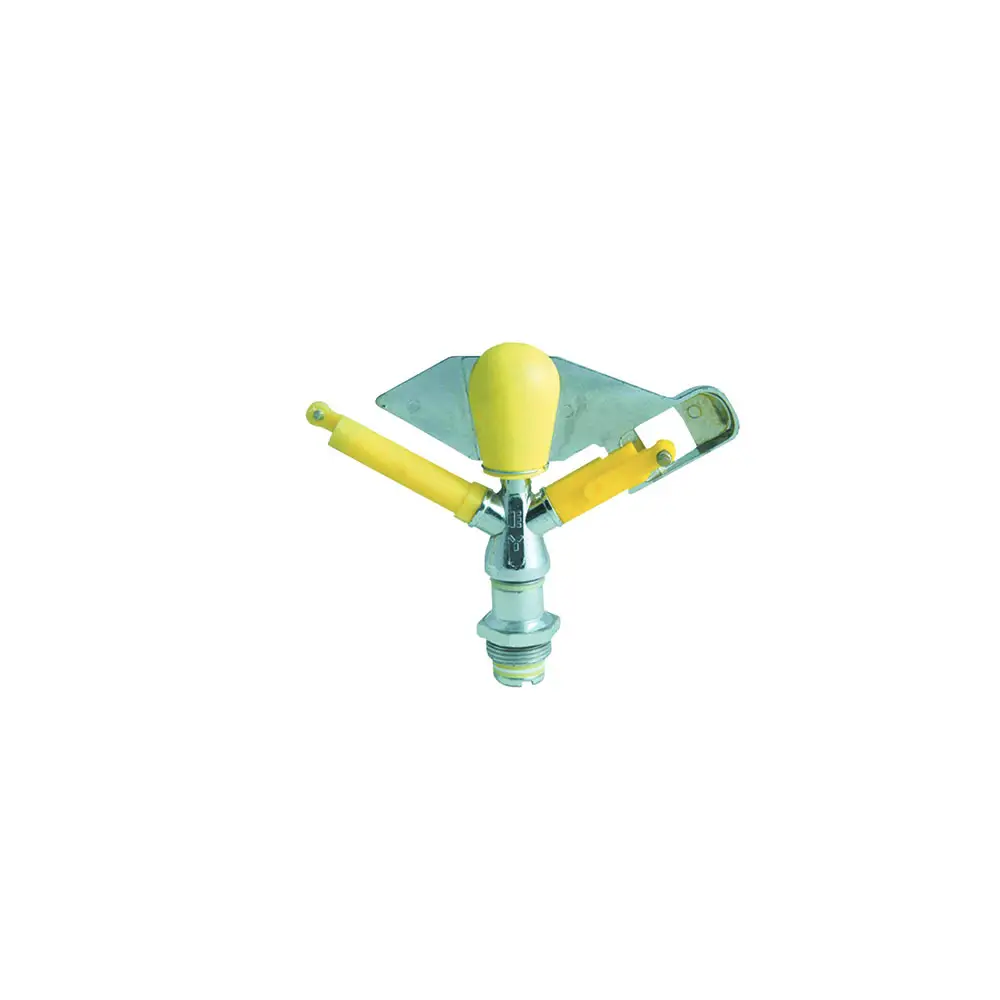

A/2 Metal Sprinkler 1″
Sprinklers

A/2 Metal Sprinkler 1″

Product code:

₺700.00

The A/2 metal sprinkler is made for open-field agricultural irrigation. 10–18 m throw radius at 1.5–3 bar, 1″ water inlet.

Quote on WhatsApp
  • Manufacturer warranty and spare parts support
  • UV-stabilised virgin raw material
  • Fast domestic and export shipping

The A/2 metal sprinkler is made for open-field agricultural irrigation. It resists chemicals, is easy to install, and its nozzle can be changed without tools.

Features

  • Durable metal body, corrosion-resistant spring and arm shaft.
  • The jet breaker pin produces strong, even droplets.
  • Grooves in the nozzles swirl the water into a fine spray that does not batter leaves.
  • Adjustable spring tension for comfortable operation at different pressures.
  • Even water distribution without puddling.
  • Maximum spacing 18 × 18 m.

Applications

  • Vegetables: potato, carrot, beet
  • Lawn irrigation
  • Various field crops

Technical specifications

Working pressure1.5–3 bar
Water inlet1"
Average flow rate1.75–2.5 m³/h
Throw radius10–18 m
Arc adjustment360°
Stand inlet pipe size1"
Stand outlet pipe size1"
Nozzle sizes (mm)4.5–4.8–5–5.5

Performance data

Nozzle (mm)Pressure (bar)Flow (m³/h)Max. throw radius (m)Spacing 12×12 (m×m)Spacing 12×18 (m×m)Spacing 18×18 (m×m)
4.5 × 4.82.01.9613.0013.619.076.04
2.52.2214.4015.4110.276.85
3.02.4914.7517.2911.527.68
4.5 × 5.02.01.9414.0013.508.986.00
2.52.1016.0014.609.726.50
3.02.2616.0015.7010.467.00
4.5 × 5.52.02.3216.0016.1010.747.16
2.52.5616.0017.8011.857.90
3.02.8116.0019.5013.018.67

Values show the maximum throw radius measured in still air.

Packaging

CodeContentsPer boxGross weightBox size
3410A/2 metal sprinkler 1″5021.32 kg37×41×26 cm
  • No minimum order quantity for this product.
  • Orders are shipped from our Istanbul factory. Export shipments by pallet or container on request.
  • Prices are wholesale list prices excluding VAT unless stated otherwise.
